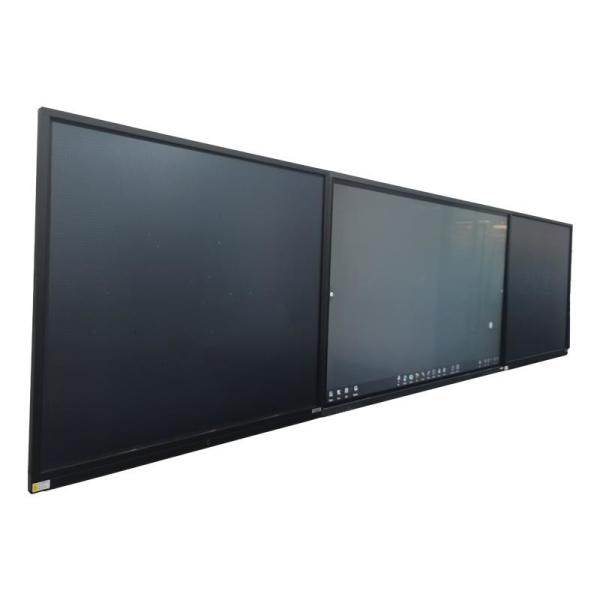

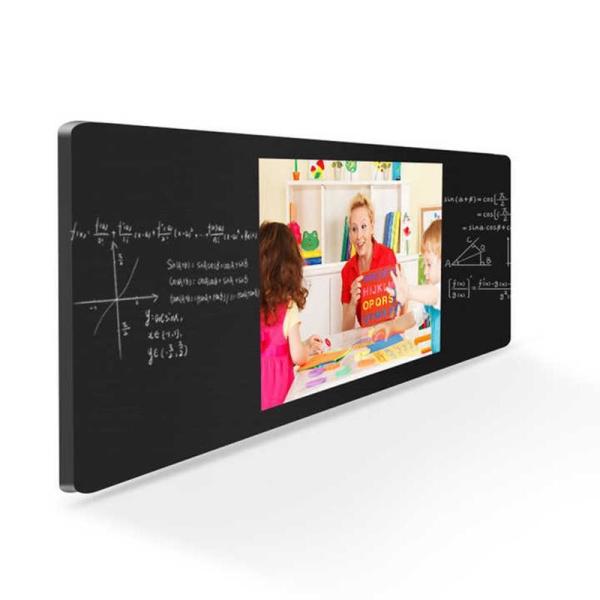

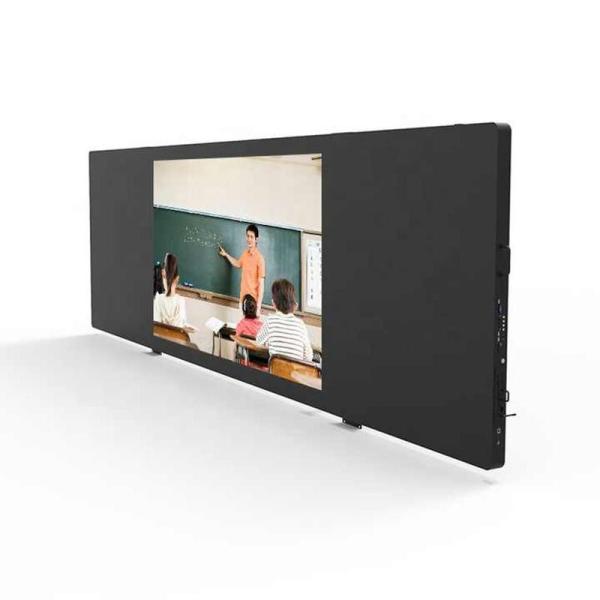

86 Inch Push Pull Digital Blackboard with Infrared 40 Touch Points and Magnetic Function for Education and Training

Overall brightness : 350cd/m²(typ.)

Response time : 8ms (typ.)

Brand Name : MTHGH

Model Number : XYC-86

Certification : CE FCC

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000 Piece

Delivery Time : 7-10 Work Days

Operating system : Windows11 or Android13

Packaging Details : Standard carton package : carton+ plastic bag+ foam+ honeycomb paperboard+ pack thread.

Resolution : 3840*2160

Screen Contrast : 1200:1(Typ.)-Hard Screen 4000:1(Typ.)-Soft Screen According To Panel Depends

Brightness : ≥450cd/㎡

Backlight Type : D LED

Aspect Ratio : 16:9

Chromaticity : 1.07(B)

Panel touch points : infrared 40 touch points

Brightness uniformity : 75%

Color Gamut : 72% NTSC

Visible area : (2158.848*1214.352) mm

Pixel Pitch : (0.5622*0.5622)mm

Life : 30,000 hrs

Screen Size : 86 Inch

Refresh frequency : 60Hz

Viewing angle : 178°(H) * 178°(V)

Contact Now

86 Inch Push Pull Digital Chalk Board Smart Magnetic Education Training System
86 Inch 4K LG Display Glass
3840 x 2160 Ultra HD Resolution
350 cd/m² Overall Luminance
Dual Sub-Boards Nano Honeycomb Magnetic
Push Pull Smart Board Magnetic Classroom Chalk Blackboard

The push-pull digital blackboard is an innovative smart magnetic education and training tool that combines digital touchscreen technology with classic classroom teaching workflows. Constructed with high-durability magnetic surfaces, physical courseware and visual learning materials can easily be mounted on the board, enhancing lesson demonstrations and student participation.

86 Inch Push Pull Digital Blackboard with Infrared 40 Touch Points and Magnetic Function for Education and Training
Key Benefits
Interaction
Interactive Touch Screen

Teachers and students touch, write, and draw simultaneously to answer questions and conduct discussions.

Multimedia
Seamless Device Linking

Connect PCs, laptops, and document cameras directly to project 4K video, courseware, and diagrams.

Layout Ergonomics
Push-Pull Sliding Mechanism

Adjust sliding blackboard wings smoothly to protect the central 86-inch 4K screen when not in digital use.

Eco-Friendly
Reusable Nano Surface

Magnetic honeycomb wings support standard chalk and liquid chalk without causing resource waste.

  • Powerful Interactive Functions: Stimulate student enthusiasm through real-time touchscreen communication and collaborative annotation.
  • Convenient Multimedia Integration: Project images, slides, and educational videos directly onto the LG 4K display. Supports distance learning over local networks.
  • Optimized Layout Functionality: Teachers rearrange magnetic sub-boards and digital tools on the fly to maintain clean lesson coherence.
  • Future-Ready Education Tool: Provides a modern visual environment that seamlessly bridges traditional chalk writing and digital learning.
86 Inch Push Pull Digital Blackboard with Infrared 40 Touch Points and Magnetic Function for Education and Training
Technical Specifications
Display Parameters
Parameter Specification Value
Screen Panel Size 86 Inch Central D-LED Display
Panel Manufacturer LG Display Grade A+ Glass Panel
Visible Display Area 2158.848 x 1214.352 mm
Native Resolution 3840 x 2160 P (4K Ultra HD)
Aspect Ratio 16:9 Widescreen
Overall Brightness 350 cd/m² (typical)
Brightness Uniformity 75% Uniform Luminance
Screen Contrast Ratio 1200:1 (Hard Screen) / 4000:1 (Soft Screen) Panel Dependent
Response Time 8 ms (typical)
Pixel Pitch 0.5622 x 0.5622 mm
Refresh Frequency 60 Hz
Viewing Angles 178° (Horizontal) / 178° (Vertical)
Panel Lifespan ≥ 30,000 Hours Continuous Operating Life
Color Gamut & Chromaticity 72% NTSC, 1.07 Billion Colors (10-bit)
HDR & Backlight Type HDR Processing Supported, D-LED Backlight (OD-18)
Operating System Compatibility Dual OS Engine Supported (Windows & Android)
Left and Right Sub Boards
Category Specification Details
Sub Board Type Nano Honeycomb Blackboard (Supports Dustless Chalk & Magnetics)
Sub Board Color Matte Black Non-Reflective Finish
Board Quantity Left Sub-Board x 1, Right Sub-Board x 1
Physical Dimensions 1119.28 x 1389.64 x 94 mm per side board
Chalk Trough Full-Length Lower Chalk Storage Trough Supported
Safety Corners Rounded Protective Safety Corners Compliant with School Standards
Application Scenarios

Deployed across primary classrooms, higher-education lecture halls, and corporate training rooms, the push-pull digital blackboard supports interactive lectures, multi-student problem solving, and seamless dual OS switching for teachers and presenters.

86 Inch Push Pull Digital Blackboard with Infrared 40 Touch Points and Magnetic Function for Education and Training 86 Inch Push Pull Digital Blackboard with Infrared 40 Touch Points and Magnetic Function for Education and Training
Frequently Asked Questions
How does the push-pull sliding mechanism work?
The outer magnetic sub-boards slide smoothly along heavy-duty tracks over the central 86-inch 4K screen, allowing teachers to lock the digital display away when using traditional chalk writing.
What glass panel manufacturer is used in this 86-inch display?
This unit features Grade A+ 3840x2160 4K D-LED panels supplied directly by LG Display, featuring 178° wide viewing angles and 350cd/m² brightness.
Does the system support dual operating systems?
Yes, the system supports dual OS operation, enabling seamless one-touch switching between Windows and Android environments.
What writing materials can be used on the flanking nano boards?
The side sub-boards feature non-reflective matte black nano-honeycomb glass that supports dustless chalk, liquid markers, and magnetic teaching aids.
Interactive Gallery & Classroom Visuals
86 Inch Push Pull Digital Blackboard with Infrared 40 Touch Points and Magnetic Function for Education and Training
Synchronized Multi-Screen Collaboration
86 Inch Push Pull Digital Blackboard with Infrared 40 Touch Points and Magnetic Function for Education and Training
4K Educational Chart & Diagram Display
